High-Precision Slitting & Rewinding Machines - FANGBANG Industrial Solutions

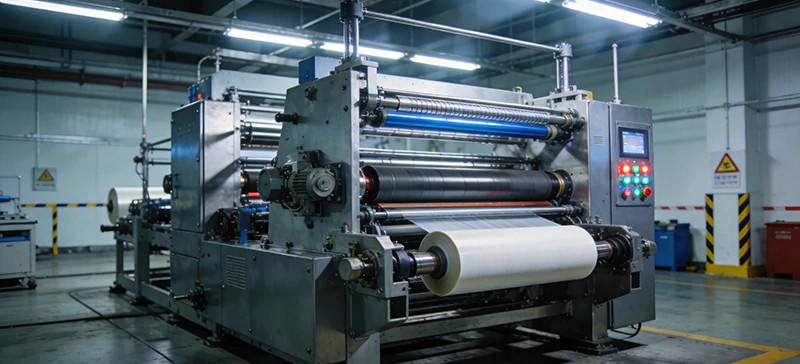

In the fast-paced world of industrial manufacturing, precision and efficiency are non-negotiable. FANGBANG has established itself as a leader in producing high-quality slitting and rewinding machines that deliver exceptional performance across diverse industries.

The Science of Precision Cutting

FANGBANG's slitting and rewinding machines incorporate advanced technologies to ensure optimal performance:

• 10.4-inch Smart Touchscreen with PLC control system, delivering precision control with slitting length error ≤0.1%

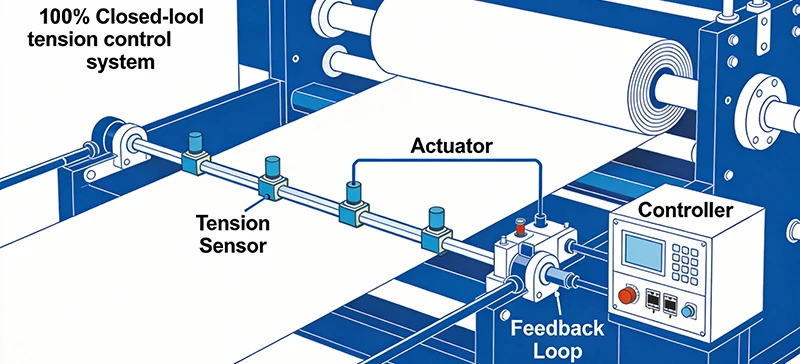

• 100% Closed-Loop Tension Control with automatic web guiding system featuring photoelectric sensors
• 99.2% Winding Neatness through pneumatic mandrel winding paired with pressure roller assembly
• Intelligent Tension Management integrating magnetic powder clutch and servo motor technology

Our Product Line

FANGBANG offers a comprehensive range of slitting and rewinding solutions tailored to different production requirements:

FQ-LB Slitting & Rewinding Machine

The FQ-LB model excels in handling wide-web materials with exceptional precision, delivering clean cuts and perfectly tensioned rolls for maximum production efficiency.

• Mechanical speed: ≤180 M/MIN
• Precision: ±0.5 MM
• Slitting speed: ≤160 M/MIN

FQ-2A Automatic Slitting & Rewinding Machine

A versatile performer, the FQ-2A offers precise slitting and smooth rewinding of various film types, ensuring optimal roll quality for downstream processes.

• Mechanical speed: ≤210 M/MIN
• Precision: ±0.5 MM
• Slitting speed: ≤200 M/MIN

FQ-GB High Speed Slitting & Rewinding Machine

The FQ-GB provides reliable slitting and rewinding for standard-width materials, known for its operational stability and ease of use in finishing lines.

• Slitting speed: ≤500 M/MIN
• Precision: 0.012-0.15 MM
• Width capacity: 50-1300 MM

WFQ-GB Highspeed Horizontal Automatic Slitting Machine

This versatile machine handles various roll materials including BOPP, PET, CPP, CPE, PVC, aluminum foil laminated with film and paper, and more.

• Slitting speed: ≤500 M/MIN
• Precision: 0.012-0.15 MM
• Width capacity: 50-1300 MM

Why Choose FANGBANG?

With 36 years of gravure manufacturing expertise, FANGBANG combines precision engineering with innovative technology to deliver superior industrial solutions:

Precision Manufacturing Workshop

Our dust-free assembly workshop ensures core component cleanliness, achieving high factory acceptance rates and consistent product quality.

Advanced Machining Equipment

We utilize German DMG five-axis machining centers and Japanese Mitutoyo coordinate measuring machines, extending tool life by 3 times compared to standard equipment.

Professional Installation Team

Senior engineers provide on-site installation guidance, ensuring equipment foundation positioning accuracy with error ≤0.1mm for optimal performance.

Industry Applications

FANGBANG's slitting and rewinding machines serve diverse industries:

1. Diaper Packaging - Precise cutting of packaging materials for hygiene products
2. Flexible Plastic Packaging - High-speed processing of plastic films for food and consumer goods
3. Masking Tape - Precision slitting of adhesive tapes for industrial applications
4. Pressure Sensitive Labels - Clean cutting of label materials for printing applications
5. Tissue Packaging - Efficient processing of paper products for consumer use

Frequently Asked Questions

What is the cutting precision of FANGBANG machines?

Equipped with a high-precision servo control system, our machines maintain cutting accuracy at ±0.1mm, ensuring smooth edges without burrs across all materials.

What types of materials can your machines process?

Our equipment handles 12-500μm plastic films, metallized films, paper, and non-woven fabrics, supporting cutting widths from 8-1600mm for maximum versatility.

Is the operating interface user-friendly?

All models feature a 10.4-inch smart touchscreen and PLC control system with parameterized settings. Operators can master the equipment after just 3 days of comprehensive training.

How is winding neatness ensured?

Through closed-loop tension control and EPC web guiding systems, combined with pneumatic mandrels for uniform clamping, we achieve winding edge neatness exceeding 99.2%, effectively reducing material waste.

The FANGBANG Advantage

FANGBANG's commitment to quality and innovation has made us a trusted partner for industrial manufacturers worldwide. Our slitting and rewinding machines represent the perfect blend of precision engineering, advanced technology, and user-centric design.

Whether you need high-speed processing for large-scale production or precise cutting for specialized applications, FANGBANG offers tailored solutions that meet the most demanding industry standards. Contact us today to discuss your project needs.
