The laminator employs intelligent tension control and three-roll laminating technology to achieve high-speed, precise coating and robust lamination, significantly enhancing production efficiency and product quality.
Material loss rate reduced by 3%
Intelligent tension system and EPC web guiding device ensure roll flatness
Production efficiency increased by 30%
Three-stage independent temperature-controlled drying system integrated with pre-lamination preheating unit
Peel strength enhanced by 20%
Three-roller laminating technology synergized with pneumatic back-pressure doctor blade
The GF-AC dry laminator features advanced drying technology and precise glue coating for strong, bubble-free lamination of composite films at high production speeds.

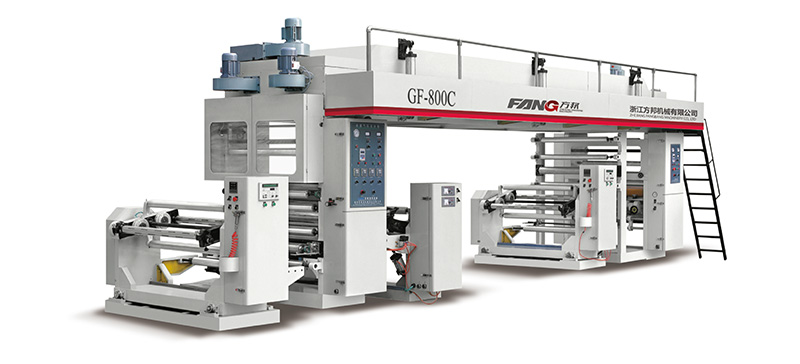

Our GF-C model ensures high-strength lamination without solvents, featuring precise adhesive application for clean and efficient production on wider webs.
Designed for reliability, the dry laminating machine offers high-performance bonding with user-friendly controls, ideal for various flexible packaging structures.

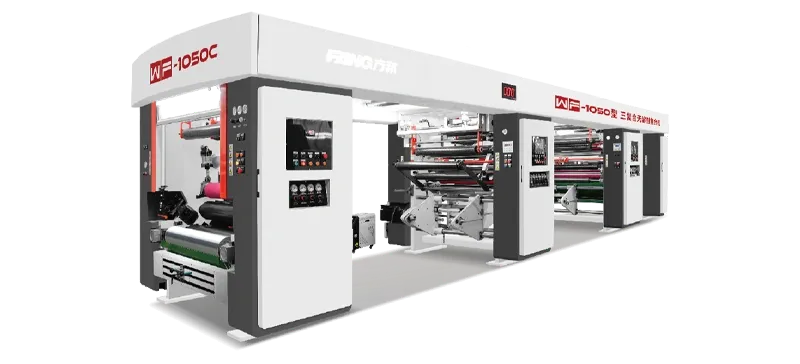

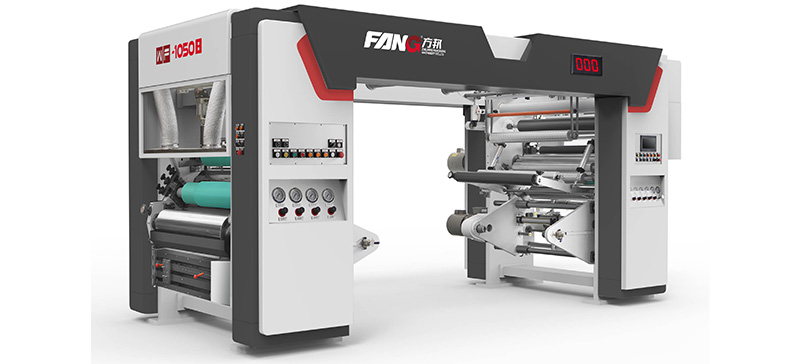

Our WF-B model ensures high-strength lamination without solvents, featuring precise adhesive application for clean and efficient production on wider webs.

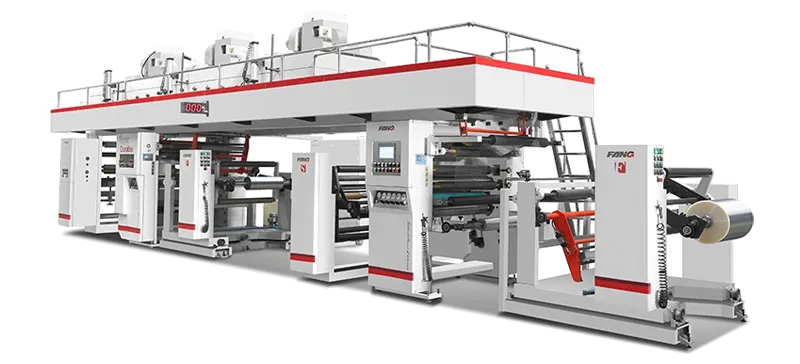

Our Solvent Less and Dry Type Laminating Machine delivers efficient and consistent dry lamination with intelligent tension control, ensuring perfect bonding for medium to wide web applications.
This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper,etc.
≤500 M/MIN
Laminating speed
1350 MM
Laminating width
1.0-3.0 G/M
Glue spread
Why Choose FANGBANG
Drawing on 36 years of gravure manufacturing expertise

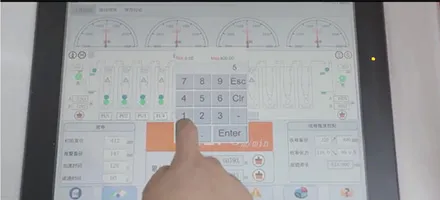

Intelligent Production Management System
Features cloud-based storage of process parameters with one-click recall, supporting intelligent memory for over 200 recipes
Micron-Level Precision Machining of Components
Core rollers and components are precision-machined using five-axis CNC centers, achieving critical mating surface accuracy of 0.005mm
Broad Material Compatibility
Accommodates substrates from 12μm ultra-thin films to 350g/㎡ cardstock, achieving optimal lamination results across materials via a three-zone temperature control system
Which Laminating Machines is right for my application?
The right Laminating Machines for every application and every industry. Need more information before
buying a laser machine? Find everything you need to know about laser cutting in our guide.
Food Bags
Frozen Food Packaging
Liquid Packaging Pouches
Retort Pouches Bags
Stand up Pouches
FAQ
Find Q&A related to customization and services for gravure printing presses:
How is the laminating strength of the laminator ensured?
Precision three-roll compression and intelligent temperature control guarantee peel strength ≥3.5N/15mm, far exceeding industry standards.
What lamination processes does the equipment support?
Supports dry and solvent-free lamination processes. Optional hot-melt adhesive lamination modules are available to accommodate diverse production requirements.
How is coating uniformity controlled?
Equipped with high-precision anilox rollers and an intelligent doctor blade system, coating volume deviation is controlled within ±0.15g/㎡.
What is the maximum production speed?
Maximum operating speed reaches 200m/min. Equipped with an intelligent tension control system, it ensures stable laminating quality during high-speed operation.
How is continuous production maintained during roll changes?
Features a turret-style dual-station unwinding/rewinding system supporting automatic roll changes without stopping production, effectively increasing equipment utilization by over 35%.
