Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation ofcolor register quickly and accu-rately.
Main motor with inverter speed control.
Turret un/rewinding section, non-stop material splicing.
Unwinding and rewinding adopt frequency conversion speed regulation and closed-loop tension control system.

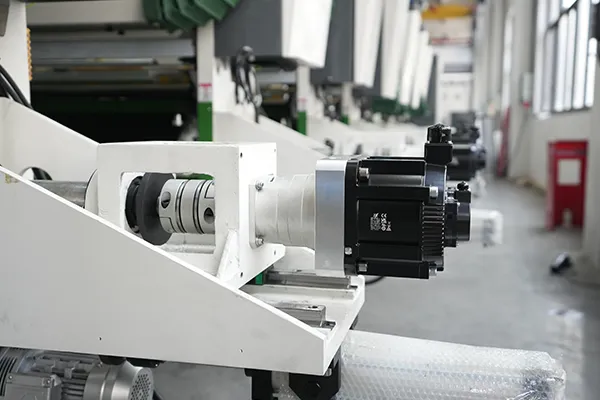

The unwinding traction and rewinding traction are driven by servo motors and have a closed-loop tension control system.
Closed oven and independent heating hot air blowing system, automatic constant temperature system.
Pneumatic impressing system and pneumatic doctor blade system
Diaphragm-type pneumatic ink auto circulating system
Inflatable air shaft for unwinding / rewinding material loading
Printing linear speed and meter counting display
Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
Still picture is optional.
| Model | AZJ-8850CS | AZJ-81050CS | AZJ-81250CS |
| Max.Width of Web | 850mm | 1050mm | 1250mm |
| Mechanical Max. Speed | 320m/min | 320m/min | 320m/min |
| Max. Printing Speed | 300m/min | 300m/min | 300m/min |
| Max. Unwind-Rewind Diameter | Φ600mm | Φ600mm | Φ600mm |
| Internal Diameter of Roll Core of Substrate | Φ76mm | Φ76mm | Φ76mm |
| Diameter of Printing Cylinder | Φ105-300mm | Φ105-300m | Φ105-300mm |
| Register Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Tension Range | 3-25kg | 3-25kg | 3-25kg |
| Heating Power of Drying Oven | 175kw | 200kw | 225kw |
| Total Power | 195kw | 220kw | 245kw |
| Weight | About 36000kg | About 38000kg | About 40000kg |
| Overall Dimension (L*W*H) | 18300*3700*3100mm | 18300*3900*3100mm | 18300*4100*3100mm |
