Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accu- rately,double arc
Main motor with inverter speed control.
Double arms and double station for rewind/rewind, non-stop material splicing.
Unwinding and rewinding adopt frequency conversion speed regulation and closed-loop tension control system.

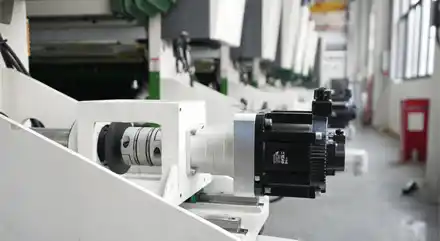

The unwinding traction and rewinding traction are driven by servo motors and have a closed-loop tension control system.
Closed oven and independent heating hot air blowing system, automatic constant temperature system.
Pneumatic impressing system and pneumatic doctor blade system.
Diaphragm-type pneumatic ink auto circulating system
Inflatable air shaft for unwinding / rewinding material loading
Printing linear speed and meter counting display
Shaft lessprinting cylinder loading device,printing cylinderis fixed by shat-less air chuck.
Equipped with ink distributing roller to transfer ink.
| Model | AZJ-8850D | AZI-81050D | AZJ-81250D |
| Max.Width of Web | 850mm | 1050mm | 1250mm |
| Mechanical Max. Speed | 420m/min | 420m/min | 420m/min |
| Max. Printing Speed | 400m/min | 400m/min | 400m/min |
| Max. Unwind-Rewind Diameter | Φ800mm | Φ800mm | Φ800mm |
| Internal Diameter of Roll Core of Substrate | Φ76mm | Φ76mm | Φ76mm |
| Diameter of Printing Cylinder | Φ105-300mm | Φ105－300m | Φ105-300mm |
| Register Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Tension Range | 3-25kg | 3-25kg | 3-25kg |
| Heating Power of Drying Oven | 184kw | 200kw | 220kw |
| Total Power | 260kw | 280kw | 300kw |
| Weight | About 40000kg | About 42000kg | About 44000kg |
| Overall Dimension (L*W*H) | 18300*3700*3400mm | 18300*3900*3400mm | 18300*4100*3400mm |
